Product Summary
The NJU9201BD is a low-power-consumption,high-performance 3*1/2 digit single chip A/D converter containing a voltage reference, oscillator,3*1/2 digit A/D converter, 7-segment decoder, display driver and control circuits.The NJU9201BD can be operated on simple application circuits as they require only few external components, therefore they are most suited for digital multimeters, digital thermometers and other likes.
Parametrics
NJU9201BD absolute maximum ratings: (1)supply voltage:15V; (2)storage temperature range:-40℃ to +125℃; (3)operating temperature range:0 to +75 ℃; (4)power dissipation:300mW.
Features
NJU9201BD features: (1)guaranteed 0 reading for 0 input on al!scales; (2)polaritv detection at 0 point using a high-accuracv null-detection; (3)low input current:1pA typ; (4)true differential input and reference; (5)displav device direct driving; (6)reference and oscillation circuits incorporated; (7)low power consumption; (8)no external active components required; (9)package outline:DIP 40/DMP 42; (10)C-MOS technology.

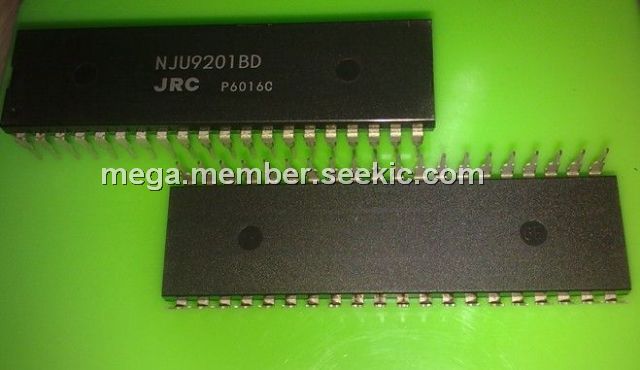

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 NJU9201BD |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||
|
NJU9201BD |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
|
NJU9201BM |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
|
NJU9202BD |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
|
NJU9202BM |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
|
NJU9203BD |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
|
NJU9204BD |
NJR |
ADC (A/D Converters) A/D Converter |
Data Sheet |
Negotiable |
|
||||
