Product Summary
The HA2-2520-2 comprise a series of operational amplifiers delivering an unsurpassed combination of specifications for slew rate, bandwidth and settling time. The HA2-2520-2 dielectrically isolated amplifiers are controlled at close loop gains greater than 3 without external compensation. In addition, the HA2-2520-2 also provide low offset current and high input impedance.
Parametrics
HA2-2520-2 absolute maximum ratings: (1)Supply Voltage (Between V+ and V- Terminals): 40V; (2)Differential Input Voltage: 15V; (3)Output Current: 50mA; (4)Thermal Resistance, θJA (℃/W) θJC (℃/W), Metal Can Package: 165, 80; (5)Maximum Junction Temperature (Hermetic Packages): +175℃; (6)Maximum Junction Temperature (Plastic Package): +150℃; (7)Maximum Storage Temperature Range: -65℃ to +150℃.
Features
HA2-2520-2 features: (1)High Slew Rate: 120V/μs; (2)Fast Settling: 200ns; (3)Full Power Bandwidth: 2MHz; (4)Gain Bandwidth (AV ≥ 3): 20MHz; (5)High Input Impedance: 100MΩ; (6)Low Offset Current: 10nA; (7)Compensation Pin for Unity Gain Capability; (8)Pb-Free Available (RoHS Compliant).

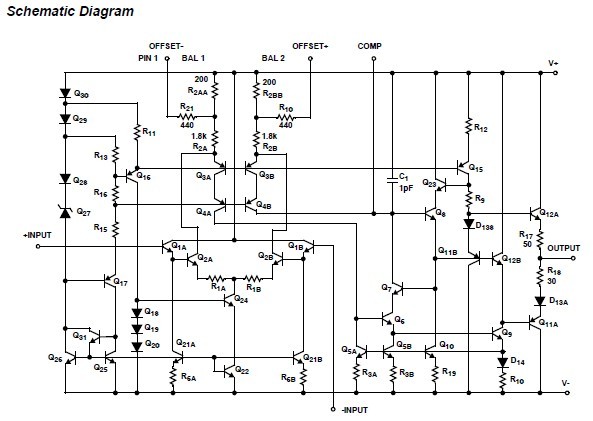

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 HA2-2520-2 |
Intersil |
IC OPAMP VFB 20MHZ 120V/US 8CAN |
Data Sheet |
Negotiable |
|
||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||
 |
HA2-1.5-A+ |
Condor / SL Power |
Linear and Switching Power Supplies 2V @ 1.5A |
Data Sheet |
Negotiable |
|
||||||
|
HA2-2520-2 |
Intersil |
IC OPAMP VFB 20MHZ 120V/US 8CAN |
Data Sheet |
Negotiable |
|
||||||
|
HA2-2522-2 |
Intersil |
IC OPAMP VFB 20MHZ 120V/US 8CAN |
Data Sheet |
Negotiable |
|
||||||
|
HA2-2525-5 |
Intersil |
IC OPAMP VFB 20MHZ 120V/US 8CAN |
Data Sheet |
|
|
||||||
|
HA2-2525-5ZR5254 |
Intersil |
IC OPAMP SERIES 8-METAL CAN |
Data Sheet |
|
|
||||||
|
HA2-2600-2 |
Intersil |
IC OPAMP VFB 12MHZ HIGHZ 8CAN |
Data Sheet |
Negotiable |
|
||||||
