Product Summary
The CY7C67200-48BAXI is a USB On-The-Go (OTG) host/peripheral controller. It is designed to easily interface to most high-performance CPUs to add USB host functionality. It has its own 16-bit RISC processor to act as a coprocessor or operate in standalone mode. It also has a programmable I/O interface block allowing a wide range of interface options.
Parametrics
Absolute maximum ratings: (1)Storage Temperature: –40℃ to +125℃; (2)Ambient Temperature with Power Supplied: –40℃ to +85℃; (3)Supply Voltage to Ground Potential: 0.0V to +3.6V; (4)DC Input Voltage to Any General Purpose Input Pin: 5.5V; (5)DC Voltage Applied to XTALIN: –0.5V to VCC + 0.5V; (6)Static Discharge Voltage: > 2000V; (7)Max Output Current, per I/O: 4 mA.
Features
Features: (1)Single-chip programmable USB dual role (Host/Peripheral) controller with two configurable Serial Interface Engines (SIEs) and two USB ports; (2)Support for USB OTG protocol; (3)On-chip 48-MHz 16-bit processor with dynamically switchable clock speed; (4)Configurable I/O block supporting a variety of I/O options or up to 25 bits of General Purpose I/O (GPIO); (5)16-bit parallel host port interface (HPI) with DMA/Mailbox data path for an external processor to directly access all on-chip memory and control on-chip SIEs; (6)Fast serial port supports from 9600 baud to 2.0 Mbaud; (7)SPI supporting both master and slave; (8)Supports 12-MHz external crystal or clock; (9)Power consumption: 50 mA operational; 30 mA standby; (10)2.7V to 3.6V power supply voltage; (11)Package option: 48-pin FBGA.

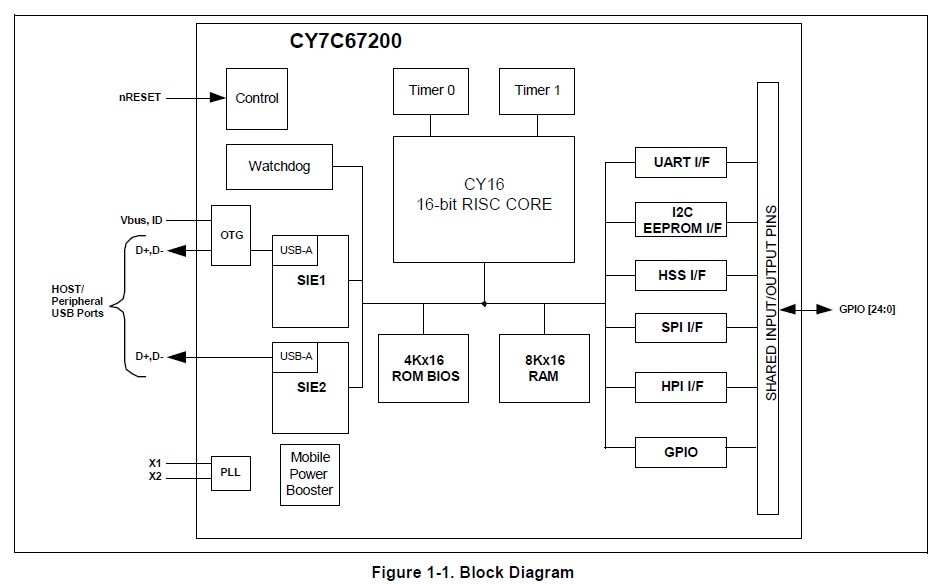

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 CY7C67200-48BAXI |
Cypress Semiconductor |
USB Interface IC LO PWR OTG IND |
Data Sheet |
|
|
||||||||||||
|
CY7C67200-48BAXIT |
Cypress Semiconductor |
USB Interface IC LO PWR OTG IND |
Data Sheet |
|
|
||||||||||||
