Product Summary

The MC145152DW is programmed by 14 parallel–input data lines for the N counter and three input lines for the R counter. The MC145152DW features consist of a reference oscillator, selectable–reference divider, digital–phase detector, and 14bit programmable divide–by–N counter.

Parametrics

MC145152DW absolute maximum ratings: (1)DC Supply Voltage, VDD: -0.5 to + 10.0V; (2)Input or Output Voltage (DC or Transient), Vin, Vout: –0.5 to VDD+0.5V; (3)Output Voltage (DC or Transient), SW1, SW2 (Rpull–up = 4.7 kW), Vout: –0.5 to +15V; (4)Input or Output Current (DC or Transient), per Pin, Iin, Iout: ±10mA; (5)Supply Current, VDD or VSS Pins, IDD, ISS: ±30mA; (6)Power Dissipation, per Package, PD: 500mW; (7)Storage Temperature, Tstg: –65 to +150℃.

Features

MC145152DW features: (1)Operating Temperature Range: – 40 to 85℃; (2)Low Power Consumption Through Use of CMOS Technology; (3)3.0 to 9.0 V Supply Range; (4)On– or Off–Chip Reference Oscillator Operation; (5)Lock Detect Signal; (6)Single Modulus/Parallel Programming; (7)“Linearized” Digital Phase Detector Enhances Transfer Function Linearity; (8)Two Error Signal Options: Single–Ended (Three–State) or Double–Ended; (9)Chip Complexity: 8000 FETs or 2000 Equivalent Gates.

Diagrams

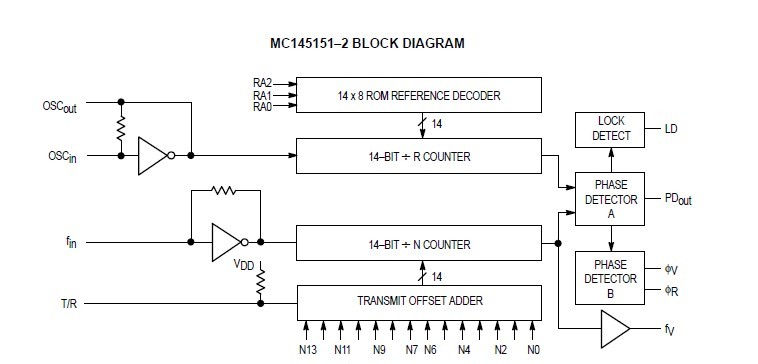

MC145152DW BLOCK DIAGRAM
