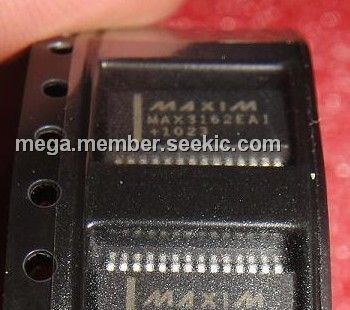

Product Summary
The MAX3162EAI is programmable RS-232/RS-485/422 multiprotocol transceivers. The MAX3162EAI is configured as a 2Tx/2Rx RS-232 interface and a single RS-485/422 transceiver simultaneously.
Parametrics
MAX3162EAI absolute maximum ratings: (1)VCC to GND: -0.3V to +6V; (2)V+ to GND: -0.3V to +7V; (3)V- to GND:0.3V to -7V; (4)V+ - V-: +13V; (5)T1OUT, T2OUT, Y, Z to GND: ±13.2V; (6)R2OUT, R1OUT, RO to GND: -0.3V to (VCC + 0.3V); (7)28-Pin SSOP (derate 10.8W/℃ above +70℃): 864mW; (8)Storage Temperature Range: -65℃ to +150℃; (9)Junction Temperature: +150℃; (10)Lead Temperature (soldering, 10s): +300℃.
Features
MAX3162EAI features: (1)Single-Supply Operation from +3V to +5.5V; (2)Pin-Programmable as 2Tx/2Rx RS-232 or Single; (3)2Tx/2Rx RS-232 and Single RS-485/422 (MAX3162); (4)Pin-Programmable RS-232/RS-485 Transmitter Slew Rates Reduce EMI; (5)10Mbps RS-485 and 1Mbps RS-232 Data Rates; (6)Pin-Programmable Half-Duplex or Full-Duplex; (7)RS-485/422 True Fail-Safe Receivers; (8)Transmitters and Receivers Protected Against Wiring Faults; (9)1μA Shutdown Supply Current; (10)1/8-Unit Load Allows up to 256 Transceivers on the Bus.

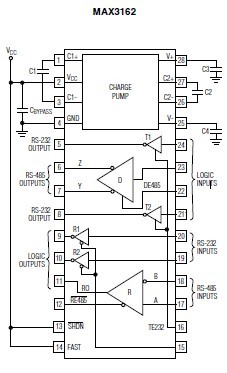

Diagrams
