Product Summary

The ATMEGA8L-8AU is a low-power CMOS 8-bit microcontroller based on the AVR RISC architecture. By executing powerful instructions in a single clock cycle, the ATMEGA8L-8AU achieves throughputs approaching 1 MIPS per MHz, allowing the system designer to optimize power consumption versus processing speed.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:-65°C to +150°C; (2)Voltage on any Pin except RESET with respect to Ground:-0.5V to VCC+0.5V; (3)Voltage on RESET with respect to Ground:-0.5V to +13.0V; (4)Maximum Operating Voltage:6.0V; (5)DC Current per I/O Pin:40.0 mA; (6)DC Current VCC and GND Pins:300.0mA; (7)Operating Temperature:-55°C to +125°C.

Features

Features: (1)High-performance, Low-power AVR@8-bit Microcontroller; (2)Advanced RISC Architecture; (3)Two 8-bit Timer/Counters with Separate Prescaler, one Compare Mode; (4)One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode; (5)Real Time Counter with Separate Oscillator; (6)Three PWM Channels; (7)Byte-oriented Two-wire Serial Interface; (8)Programmable Serial USART; (9)Master/Slave SPI Serial Interface; (10)Programmable Watchdog Timer with Separate On-chip Oscillator; (11)On-chip Analog Comparator; (12)Power-on Reset and Programmable Brown-out Detection; (13)Internal Calibrated RC Oscillator; (14)External and Internal Interrupt Sources; (15)Five Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, and Standby.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

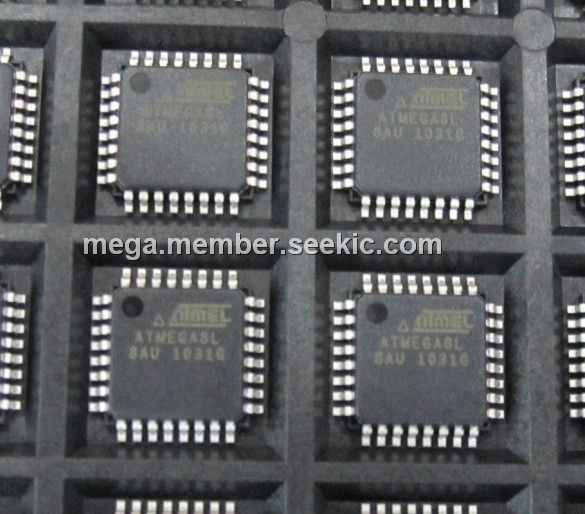

ATmega8L-8AU
ATmega8L-8AU
Atmel
8-bit Microcontrollers (MCU) 8kB Flash 0.5kB EEPROM 23 I/O Pins
Data Sheet
0-1: $2.13
1-10: $1.78
10-25: $1.34
25-100: $1.21
ATMEGA8L-8AUR
ATMEGA8L-8AUR
Atmel
8-bit Microcontrollers (MCU) AVR 8KB FLSH 512B EE 1KB SRAM-8MHz
Data Sheet
0-1670: $1.22
1670-2000: $1.22
