Product Summary

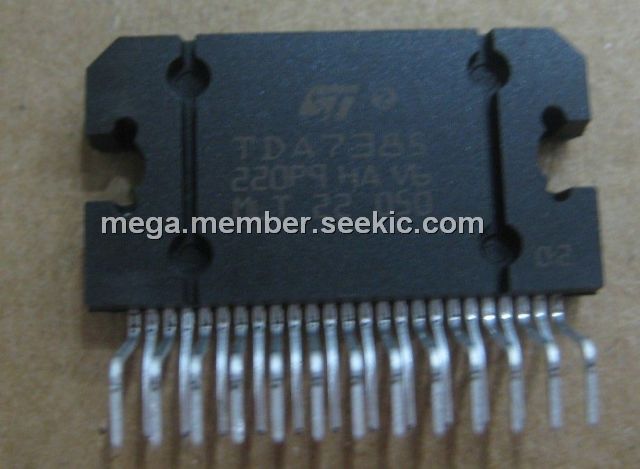

The TDA7385 is a new technology class AB Audio Power Amplifier in Flexiwatt 25 package. Thanks to the fully complementary PNP/NPN output configuration it allows a rail to rail output voltage swing with no need of bootstrap capacitors. The extremely reduced components count allows very compact sets.
Parametrics
Absolute maximum ratings: (1)VCC, Operating Supply Voltage: 18 V; (2)VCC, (DC) DC Supply Voltage: 28 V; (3)VCC, (pk) Peak Supply Voltage (t = 50ms): 50 V; (4) Ptot, Power dissipation, (Tcase = 70℃): 80 W; (5)Tj, Junction Temperature: 150 ℃; (6)Tstg, Storage Temperature: – 55 to 150 ℃.
Features
Features: (1)high output power capability; (2)clipping detector; (3)low distortion; (4)low output noise; (5)st-by function; (6)mute function; (7)automute at min. supply voltage detection; (8)low external component count.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TDA7385H |
STMicroelectronics |
Audio Amplifiers Car-Radio Amplifier 18V Op 28V DC 36W |
Data Sheet |
|
|
||||||||||||
|
TDA7385 |
STMicroelectronics |
Audio Amplifiers 4X30W Quad Brdg Amp |
Data Sheet |
|
|
||||||||||||
