Product Summary

The ADUM1251ARZ is hot swappable digital isolator with non latching bidirectional communication channels compatible with I2C interfaces. The device provides one bidirectional channel and one unidirectional channel for those applications where a bidirectional clock is not required. It contains hot swap circuitry to prevent glitching data when an unpowered card is inserted onto an active bus.

Parametrics

Absolute maximum ratings: (1)Storage Temperature:-55°C +150 °C ; (2)Ambient Operating Temperature:-40°C +105 °C ; (3)Supply Voltages:-0.5V to +7.0V ; (4)Input/Output Voltage: Side 1:-0.5V to VDD1 + 0.5V ; (5)Input/Output Voltage: Side 2:-0.5V to VDD2 + 0.5V ; (6)Common-Mode Transients:-100kV/μs to +100kV/μs.

Features

Features: (1)Bidirectional I2C communication ; (2)Open-drain interfaces ; (3)Suitable for hot swap applications ; (4)30 mA current sink capability ; (5)1000 kHz operation ; (6)3.0 V to 5.5 V supply/logic levels ; (7)8-lead SOIC lead-free package ; (8)High temperature operation: 105°C ; (9)Safety and regulatory approvals.

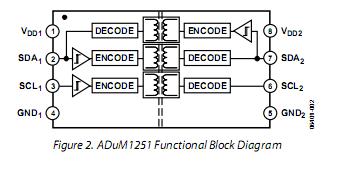

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

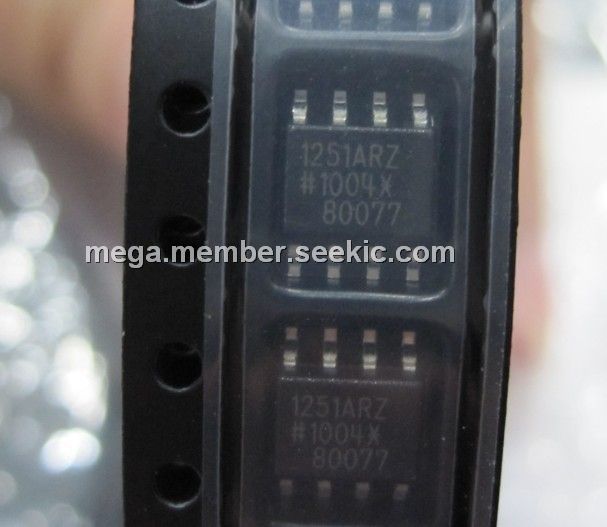

ADUM1251ARZ
ADUM1251ARZ

IC ISOLATOR 1MBPS 3CH 2.5K 8SOIC
Data Sheet
0-1: $3.31
1-10: $2.96
10-100: $2.42
100-250: $2.19
250-500: $1.96
500-1000: $1.66
1000-2500: $1.58
ADUM1251ARZ-RL7
ADUM1251ARZ-RL7

IC ISOLATOR 1MBPS 3CH 2.5K 8SOIC
Data Sheet
0-1000: $1.66
